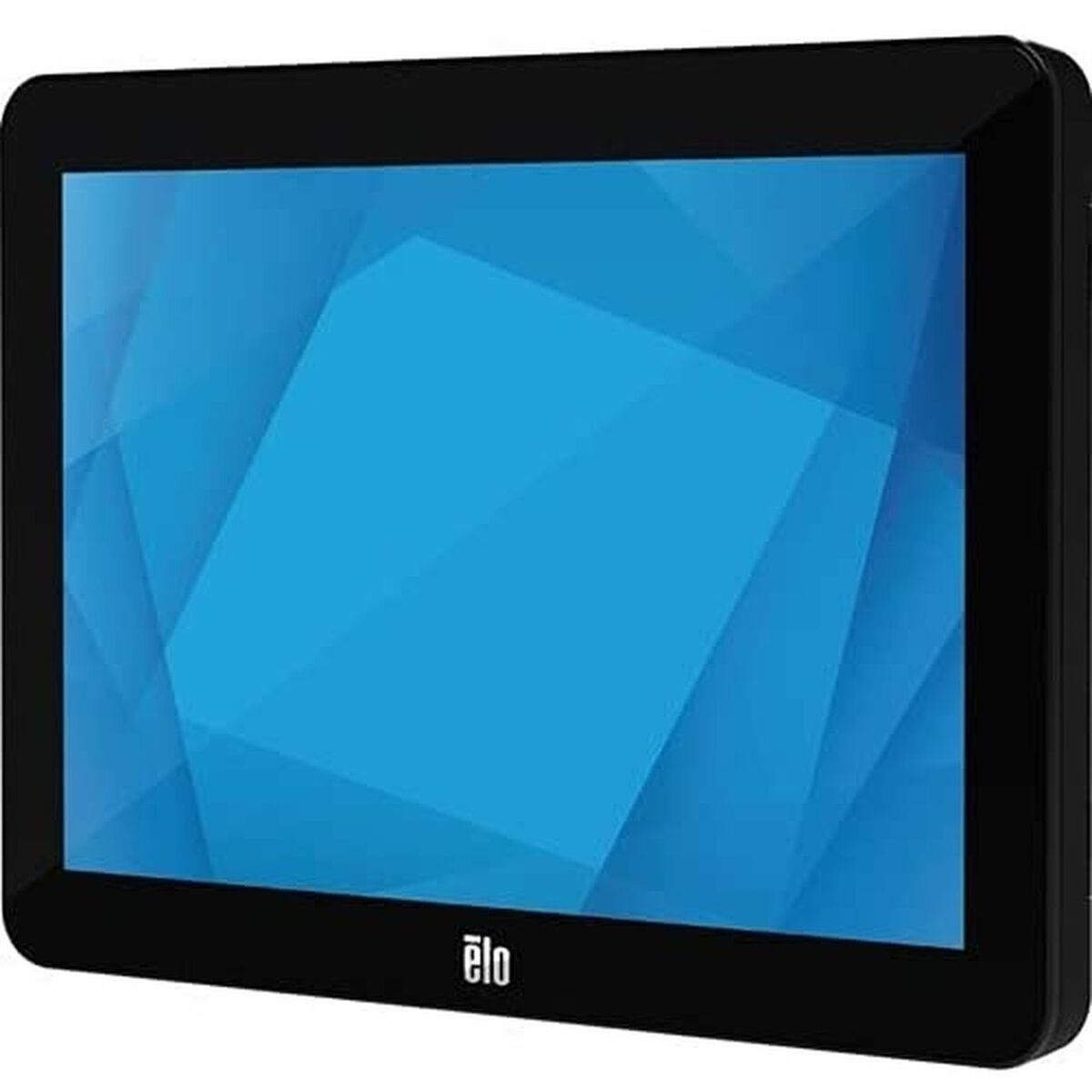

The E155834 from Elo Touch Systems is a touch monitor designed to deliver an efficient visual and interactive experience thanks to its 10.1-inch (25.6 cm) LCD screen with a resolution of 1280 x 800 pixels, providing sharp, clear images in Full HD format. This monitor integrates combined LED, TFT, and LCD technology that boosts brightness up to 315 cd/m², ensuring clear viewing even in brightly lit environments. Its sturdy black design offers versatility for professional or commercial settings, and it includes practical features such as built-in speakers for a complete multimedia experience and connectivity via HDMI, allowing connection to various devices without extra adapters. The touchscreen is a key element, enabling direct and intuitive interaction, ideal for point-of-sale systems, industrial control, or interactive applications. It also stands out for its wall-mounting capability, facilitating integration in spaces where workspace or display area optimization is needed. The result is a versatile monitor that combines a compact size with technologies suited for both touch needs and high-quality visual demands, highlighting the balance between functionality and ease of use in professional applications. This model represents a solid technological solution for users who value visual precision and touch controls on a medium-format screen, with design and connectivity adapted to multiple environments.

• Technology:
  • LED
  • LCD
  • TFT
• Product with plug: Yes
• Type of plug: Plug EU
• Resolution (px):
  • 1280 x 800 px
  • 3840 x 2160 px
• Diagonal of the screen (cm): 25,7 cm
• Connections:
  • HDMI
  • 3
  • VGA D-sub
  • USB
  • VGA
  • USB 2.0 x 3
  • USB-C 3.2 Gen 1 (3.1 Gen 1)
  • USB x 3
• Power: 4 W
• Type: Monitor
• Colour: Black
• VESA: 7,5 x 7,5 cm
• Voltage:
  • 12 V
  • 100-240 V
  • 100 - 240 V
• Screen: 10,1"
• Resolution:
  • HD
  • Full HD
  • 4K Ultra HD
• Characteristics:
  • Touchscreen
  • Integrated speakers
  • Wall mounting
• Frequency:
  • 50-60 Hz
  • 60 Hz
  • 120 Hz
• Aspect ratio: 16:10
• Energy classification:
  • A+
  • A++
• Power supply: DC
• Certificate: RoHS
• AC input frequency: 50-60 Hz
• Power RMS: 4 W
• Accuracy (relative humidity): 20 % - 80 %
• Angle: 170º
• Assembly: VESA

The Elo 1002L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1002L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.Single Cable ConnectionThe 1002L provides a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is a breeze. In case your PC isn’t equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC.One for You.One for Your CustomersThe 02-Series offers dual functionality. Use it as a traditional POS terminal or customer facing display – or BOTH! Start increasing brand loyalty and customer satisfaction by offering your customers a point of interaction to review transactions, participate in loyalty programs or see the latest promotion.Elo Edge Connect™ Lets You do More!Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!EMV CradlesThe ability to take payment is essential to complete a transaction. The 1002L offers compatible EMV cradles to securely mount an EMV Payment device directly to the display.Barcode ScannerEnhance POS terminals and price-checker applications by coupling a high-performance barcode scanner onto the Elo touchscreen.MSRElo offers the flexibility of integrating payment devices, including a Magtek 3-track encryptable MSR payment terminal.Mount with FlexibilityCustomers demand a seamless shopping experience from their first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party kiosk enclosures, the touchscreens can be integrated with ease.Mount with FlexibilityCustomers demand a seamless shopping experience from their first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party kiosk enclosures, the touchscreens can be integrated with ease. Built-to-LastThe 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design, build, and stand by the complete solution, with touch integrated from the start.

• Display diagonal: 25.6 cm (10.1")
• Display brightness: 315 cd/m²
• HD type: HD
• Display technology: LCD
• Native aspect ratio: 16:10
• Display resolution: 1280 x 800 pixels
• Panel type: TFT
• Response time: 29 ms
• Contrast ratio (typical): 800:1
• Horizontal scan range: 31.5 - 80 kHz
• Viewing angle, horizontal: 170°
• Viewing angle, vertical: 170°
• Backlight type: LED
• LED backlight: Y
• Supported graphics resolutions: 640 x 480 (VGA),800 x 600 (SVGA),1024 x 768 (XGA),1280 x 800 (WXGA),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA)
• Viewable size, horizontal: 21.7 cm
• Viewable size, vertical: 13.6 cm
• Display number of colours: 262144 colours
• Product colour: Black
• International Protection (IP) code: IPX1
• Touch technology: Multi-touch
• Touchscreen technology: Projected capacitive system
• Touchscreen type: Multi-user
• Number of simultaneous touchpoints: 10
• Built-in speaker(s): Y
• RMS rated power: 4 W
• Number of speakers: 2
• On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
• Mean time between failures (MTBF): 50000 h
• Built-in USB hub: Y
• USB 2.0 ports quantity: 3
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
• USB Touch port: Y
• USB Touch ports quantity: 1
• HDMI: Y
• HDMI ports quantity: 1
• VGA (D-Sub) ports quantity: 1
• DVI port: N
• Audio input: 1
• Wall mountable: Y
• Height adjustment: N
• Panel mounting interface: 75 x 75 mm
• VESA mounting: Y
• Power supply type: DC
• Power consumption (typical): 7.43 W
• Power consumption (standby): 1.26 W
• Power consumption (off): 0.2 W
• AC input voltage: 100 - 240 V
• AC input frequency: 50 / 60 Hz
• AC adapter output voltage: 12 V
• Energy efficiency scale: A+++ to D
• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -20 - 60 °C
• Operating relative humidity (H-H): 20 - 80%
• Storage relative humidity (H-H): 10 - 95%
• Certification: Canada cUL, ICEurope CEJapan VCCIUnited States UL, FCCChina CCCKorea, KCC, e-standbyAustralia RCMMexico NOMTaiwan BSMIInternational CBRoHS, China RoHS, WEEE, REACHIndia BISRussia EAC
• Sustainability compliance: Y
• Sustainability certificates: RoHS
• Width (without stand): 25 cm
• Depth (without stand): 2.84 cm
• Height (without stand): 16.5 cm
• Weight (without stand): 884.2 g
• Package width: 315 mm
• Package depth: 144 mm
• Package height: 243 mm
• Package weight: 1.83 kg
• Cables included: AC, HDMI, USB
• Energy efficiency class (old): A+
